MKI_ARROWFORM_* (Dimension Line End-Style)

Determines the form of the dimension arrow at the start-point or end-point of the dimension line. Possible values are:

MKI_ARROWFORM_NONE (0)

No dimension arrow.

MKI_ARROWFORM_TRIANGLE_FILL (1)

Filled triangular arrow. The triangle has an opening angle of 20° and a side length of 10.0 times the dimension line's width.

MKI_ARROWFORM_TRIANGLE (2)

Non-filled triangular arrow. The triangle has an opening angle of 20° and a side length of 10.0 times the dimension line's width.

MKI_ARROWFORM_TRIANGLE_OPEN (3)

Open triangular arrow. The triangle has an opening angle of 60° and a side length of 10.0 times the dimension line's width.

MKI_ARROWFORM_DIAGONAL (4)

Diagonal stroke. The stroke has a relative angle of 45° to the dimension line and a length of 12.0 times the dimension line's width.

MKI_ARROWFORM_CIRCLE_FILL (5)

Filled circle. The filled circle has a radius of 1.5 times the dimension line's width.

MKI_ARROWFORM_CIRCLE (6)

Non-filled circle. The filled circle has a radius of 2.5 times the dimension line's width.

MKI_ARROWFORM_CIRCLE_LARGE (7) New in Version 6.41

Large non-filled circle. The filled circle has a radius of 4.0 times the dimension line's width.

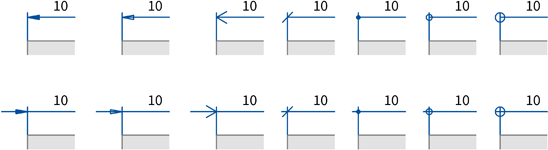

The following image shows all types of dimension arrows, once in normal presentation (upper row), once in rotated presentation with extended dimension line (lower row):

Please note that ellipse arc dimension lines do not automatically extend!
