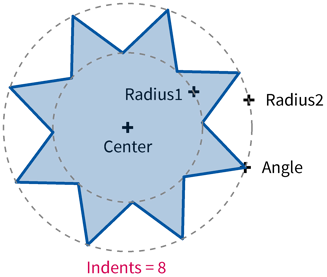

Extended Object 0 "Star" (Entity Type "Extended Object")

The extended object "Star" is defined by the sample plug-in.

Creation of this extended object is usually not supported in CAD6starter and CAD6engine Eco (unless the sample plug-in has been installed)! If already created, it can be displayed and modified generally, but not modified parametrically.

Data Block Sequence

Data Block 003( Center )

Data Block 004( Radius1 )

Data Block 004( Radius2 )

Data Block 005( Angle )

Data Block 1000( Indents )

Parameters

Center

[MKI_POINT] Center point of the spiral.

Radius1

[MKI_POINT] Radius point for the first circle.

Radius2

[MKI_POINT] Radius point for the second circle.

Angle

[MKI_POINT] Overall rotation relative to Center.

Indents

[__int32] Number of indents. Valid range is 3 <= Indents <= 1000.

Interface Command Sequence

MKI_ExtOpen, OwnerID = MKI_DB_OWNER_MK, Type = MKI_OBJ_EXT_STAR, Flag = MKI_EXTFLAG_CURVE | MKI_EXTFLAG_SURFACE

MKI_ExtAddPoint, Type = MKI_DB_POINT_CENTER

MKI_ExtAddPoint, Type = MKI_DB_POINT_RADIUS

MKI_ExtAddPoint, Type = MKI_DB_POINT_RADIUS

MKI_ExtAddPoint, Type = MKI_DB_POINT_ANGLE

MKI_ExtAddInt32, Type = 1000

MKI_ExtFastInsert

Use code like the following to parse the data blocks of this entity in memory:

MKI_BLOCK_ENUM b1( f_pExt ),

               b2( f_pExt ),

               b3( f_pExt ),

               b4( f_pExt ),

               b1000( f_pExt );

b2.SetNext( b1 );

b3.SetNext( b2 );

b4.SetNext( b3 );

b1000.SetNext( b4 );

MKI_POINT cCenter  = b1.Point(0);

MKI_POINT cRadius1 = b2.Point(0);

MKI_POINT cRadius1 = b3.Point(0);

MKI_POINT cAngle   = b4.Point(0);

__int32   nIndents = b1000.Int32()[0];
