Object 25 "Dimension Distance" (Entities) Changed in Version 2021.0 |
www.CAD6.com |
Data Block SequenceData Block 001( x1, y1 ) - Start-point Data Block 002( x2, y2 ) - End-point Data Block 000( dx1, dy1 ) - First dimension line definition Data Block 000( dx2, dy2 ) - Second dimension line definition Data Block 000( dx3, dy3 ) - Third dimension line definition Data Block 000( nx1, ny1 ) - First dimension number definition Data Block 000( nx2, ny2 ) - Second dimension number definition Data Block 000( ex1, ey1 ) - First dimension extension line definition Data Block 000( ex2, ey2 ) - Second dimension extension line definition Data Block 110( PreText ) - Text in front of number (ElemCount = MKI_LENGTH_TEXT_SHORT) Data Block 110( NumText ) - Dimension itself (ElemCount = -MKI_LENGTH_TEXT_SHORT) Data Block 110( PostText ) - Text behind the number (ElemCount = MKI_LENGTH_TEXT_SHORT) Data Block 110( Tolerance1 ) - Upper tolerance (ElemCount = MKI_LENGTH_TEXT_SHORT) Data Block 110( Tolerance2 ) - Lower tolerance (ElemCount = MKI_LENGTH_TEXT_SHORT) Data Block 225( ... ) - Distance dimension parameters
The points (x1,y1) and (x2,y2) determine the distance to be measured. The point (dx1,dy1) determines the dimension's direction and thus the dimension line's direction. The point (dx2,dy2) defines the distance between the dimension line and the line to be measured. Finally, the point (dx3,dy3) determined the end-point of the dimension line if uses a short form. The points (nx1,ny1) and (nx2,ny2) determine the position and, if applicable, the orientation of the dimension number.
The following texts make up the dimension texts to be displayed, where PreText, NumText and PostText will be connected to one text ("Main dimension text") without separating characters.
The name "Dimension Distance" does not mean that this object can only be used to dimension distances, but that the reference is given by the distance of two points. As a result, this dimension can also be used to dimension a diameter or radius in a plain view.
Attributes New in Version 2021.0A distance dimension may contain attribute data blocks (see MKI_BLOCK_ATTRIBUTE) only of type "local". They must be placed behind all other datablocks. Attributes of types "outline" and "point" must not exist. The total number of local attributes per object is limited to MKI_ATTRIBS_PER_OBJECT.
Specific Usage of Data Block 225DimFlag New in Version 6.51 [__int32] Unused. LineOrientation [__int32] The value LineOrientation determines the dimension's orientation, i.e. the direction into which the dimension is to be calculated as well as the dimension line's orientation. This allows e.g. to dimension a diagonal line vertically or horizontally. Possible values are:
MKI_DIMLINE_PARALLEL The dimension (and thus the dimension line) are parallel to the line stored in the object.
MKI_DIMLINE_ARBITRARY The dimension (and thus the dimension line) are parallel to a line passing through the line's start-point (x1,y1) and the first dimension line definition point (dx1,dy1).
MKI_DIMLINE_HORIZONTAL Identical to MKI_DIMLINE_ARBITRARY. This setting is used inside the application to create a horizontal dimension. After creating the object, it behaves like with value MKI_DIMLINE_ARBITRARY.
MKI_DIMLINE_VERTICAL Identical to MKI_DIMLINE_ARBITRARY. This setting is used inside the application to create a vertical dimension. After creating the object, it behaves like with value MKI_DIMLINE_ARBITRARY.
MKI_DIMLINE_AUTOMATIC Identical to MKI_DIMLINE_ARBITRARY. This setting is used inside the application to create a horizontal or vertical dimension. After creating the object, it behaves like with value MKI_DIMLINE_ARBITRARY. LineDimType [__int32] The value LineDimType determines whether the dimension line has full size with two arrows or only a partial length with one arrow. Additionally, it determines whether the dimension extension lines shall be perpendicular to the dimension line or not. Possible values are:
MKI_DIMTYPE_STANDARD Full-length dimension line with two arrows. The dimension line is placed so that probable dimension extension lines would be perpendicular to it (even if they are not visible).
MKI_DIMTYPE_ARBITRARY Full-length dimension line with two arrows. The dimension line starts at a line passing through the points (x2,y2) and (dx2,dy2) and ends at a line parallel to it, passing through the point (x1,y1).
MKI_DIMTYPE_HALF Partial-length dimension line with one arrow. A probable dimension extension line would be perpendicular to the dimension, starting at the end-point being closer to (dx2,dy2). At this extension line starts the dimension line, having an arrow and extension line according to ArrowStartForm, ArrowStartMode and ExtStartDisplay. The dimension line ends at a line parallel to the dimension extension line, passing through the point (dx3,dy3). LineDistMode [__int32] The value LineDistMode determines how the dimension line's distance to the dimension is calculated. The distance is always measured perpendicularly to the dimension line, even if it is rotated (see LineOrientation). Possible values are:
MKI_DIMDISTANCE_ARBITRARY The dimension line passes through the point (dx2,dy2).
MKI_DIMDISTANCE_FIXED The dimension line has exactly the distance stated in LineDistance to the nearest end of the dimension. The position of (dx2,dy2) determines on what side it lies.
MKI_DIMDISTANCE_MULTIPLE The dimension line's distance to the nearest end of the dimension is a multiple of the value stated in LineDistance, while being as close as possible to (dx2,dy2).
Example|BlockType| 0,225,0,0, |TextFont| 0,0,400,"DINLQ", |TextXProperty| 1,1,0,0.0/0.0/0.0,0.0/0.0/0.0,0.0,0,0,0, |TextSize1,TextSize2| 5.0,3.5, |CharDistance,TabDistance,TextMode,TextOrder| 0,4,1,0, |Precision,Refresh,Centered,Tight,Rotate| 2,0,0,0,1, |ArrowStart...,ArrowEnd...| 1,0,1,0, |ExtStart/EndDisplay,LineDisplay| 1,1,1, |Orientation,Type,DistMode,Distance| 1,0,0,10.0,0.0, |System| 0;
This distance dimension will be lettered with the font "DINLQ", using pen 1. The main dimension has a text size of 5 mm, the tolerances have a text size of 3.5 mm. The dimension number can be placed anywhere, even be rotated, and it will not be updated automatically. The dimension and thus the dimension line does not necessarily lie parallel to the dimension. The dimension line is full-length and its distance to the dimension is arbitrary. Both dimension extension lines will be visible, they are perpendicular to the dimension line. At both ends of the dimension line, a filled, non-rotated, triangular arrow will be drawn. The dimension will be calculated according to the settings in the coordinate system "00: *Standard".

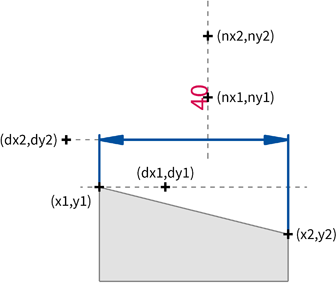

The image above shows a distance dimension created using the settings described above. The points (x1,y1) and (x2,y2) define the distance to be dimensioned. The dimension shall be calculated horizontally, so the first dimension line definition point (dx1,dy1) is placed besides the dimension's start-point (x1,y1). The dimension line is parallel to a line passing through (dx1,dy1) and (x1,y1), and passes through the second dimension line definition point (dx2,dy2). It is full-length and has an arrow at each end. As LineType is set to 0x0000, the dimension extension lines are perpendicular. The dimension number was placed by setting the point (nx1,ny1) and rotated by 90° by placing the point (nx2,ny2) above it.

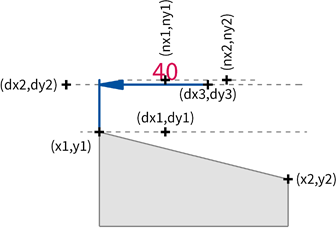

The image above shows another distance dimension. It was created using settings similar to the settings described above but LineType was set to 0x0002, so the dimension line has only partial length and a single arrow. The dimension line starts at the point (dx1,dy1) and ends at the point (dx3,dy3). The dimension number was placed non-rotated by placing (nx2,ny2) right to (nx1,ny1).
Interface Command SequenceMKI_ObjectOpen, Type = MKI_OBJ_DDISTANCE MKI_ObjectAddPoint, Type = MKI_DB_POINT_START MKI_ObjectAddPoint, Type = MKI_DB_POINT_END MKI_ObjectAddPoint, Type = MKI_DB_POINT_ANY MKI_ObjectAddPoint, Type = MKI_DB_POINT_ANY MKI_ObjectAddPoint, Type = MKI_DB_POINT_ANY MKI_ObjectAddPoint, Type = MKI_DB_POINT_ANY MKI_ObjectAddPoint, Type = MKI_DB_POINT_ANY MKI_ObjectAddPoint, Type = MKI_DB_POINT_ANY MKI_ObjectAddPoint, Type = MKI_DB_POINT_ANY MKI_ObjectAddTextShort, StaticLength = false MKI_ObjectAddTextShort, StaticLength = true MKI_ObjectAddTextShort, StaticLength = false MKI_ObjectAddTextShort, StaticLength = false MKI_ObjectAddTextShort, StaticLength = false
Use the MKI_PARSE_OBJ_DDISTANCE class to parse the data blocks of such an object in memory.
|
