Object 32 "Dimension Perimeter" (Entities) Changed in Version 2021.0

Data Block Sequence

Data Block 000( nx1, ny1 )

- First dimension number definition

Data Block 000( nx2, ny2 )

- Second dimension number definition

Data Block 100( Perimeter )

- Perimeter in mm

Data Block 110( PreText )

- Text in front of number (ElemCount = MKI_LENGTH_TEXT_SHORT)

Data Block 110( NumText )

- Perimeter as a text (ElemCount = -MKI_LENGTH_TEXT_SHORT)

Data Block 110( PostText )

- Text behind the number (ElemCount = MKI_LENGTH_TEXT_SHORT)

Data Block 110( Tolerance1 )

- Upper tolerance (ElemCount = MKI_LENGTH_TEXT_SHORT)

Data Block 110( Tolerance2 )

- Lower tolerance (ElemCount = MKI_LENGTH_TEXT_SHORT)

Data Block 230( ... )

- Perimeter dimension parameters

The points (nx1,ny1) and (nx2,ny2) determine the position and, if applicable, the orientation of the dimension number. The perimeter value is explicitly stored in Perimeter, using internal [mm]. When updating this dimension, the value stored in Perimeter is written to NumText, considering the current scale and length unit. The value of Perimeter itself remains unchanged!

The following texts make up the dimension texts to be displayed, where PreText, NumText and PostText will be connected to one text ("Main dimension text") without separating characters.

Attributes New in Version 2021.0

A perimeter dimension may contain attribute data blocks (see MKI_BLOCK_ATTRIBUTE) only of type "local". They must be placed behind all other datablocks. Attributes of types "outline" and "point" must not exist. The total number of local attributes per object is limited to MKI_ATTRIBS_PER_OBJECT.

Specific Usage of Data Block 230

Example

|BlockType|

0,230,0,0,

|TextFont|

0,0,400,"DINDRAFT",

|TextXProperty|

1,1,0,0.0/0.0/0.0,0.0/0.0/0.0,0.0,0,0,

|TextSize1,TextSize2|

5.0,3.5,

|CharDistance,TabDistance,TextMode,TextOrder|

0,4,1,0,

|Precision,Refresh,Rotate|

2,0,1,

|System|

0;

This perimeter dimension will be lettered with the font "DINDRAFT", using pen 1. The main dimension has a text size of 5 mm, the tolerances have a text size of 3.5 mm. The dimension number is rotated and will not automatically be updated.

The dimension will be calculated according to the settings in the coordinate system "00: *Standard".

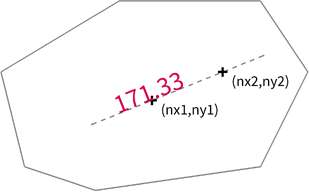

The image above shows a perimeter dimension created using the settings described above. The points (nx1,ny1) and (nx2,ny2) place and rotate the dimension number.

Interface Command Sequence

MKI_ObjectOpen, Type = MKI_OBJ_DPERIMETER

MKI_ObjectAddPoint, Type = MKI_DB_POINT_ANY

MKI_ObjectAddPoint, Type = MKI_DB_POINT_ANY

MKI_ObjectAddConstant

MKI_ObjectAddTextShort, StaticLength = false

MKI_ObjectAddTextShort, StaticLength = true

MKI_ObjectAddTextShort, StaticLength = false

MKI_ObjectAddTextShort, StaticLength = false

MKI_ObjectAddTextShort, StaticLength = false

MKI_ObjectAddDimSmall

MKI_ObjectFastInsert

Use the MKI_PARSE_OBJ_DPERIMETER class to parse the data blocks of such an object in memory.
